CODESYS GmbH

Powerful CODESYS add-on libraries for ctrlX PLC

The ctrlX PLC app benefits from powerful, additional CODESYS libraries that offer extensive functionalities: from simple motion control to complex CNC and robotics applications.

Motion projects are efficiently engineered using PLCopen Motion function blocks. Furthermore, the libraries enable the implementation of electronic gears and cam profiles. Integrated Cam and CNC editors, along with an axis group configurator for robot kinematics, simplify implementation.

Integrated fieldbus support within the IEC-61131-3 tool simplifies the connection of external devices through configurators, protocol stacks, and diagnostic functions for real-time Ethernet, classic fieldbuses, and various industry protocols. The certified EtherNet/IP library for the ctrlX CORE is particularly noteworthy.

WebVisu, which allows the creation and display of graphical user interfaces, completes the offering. Additional libraries support communication protocols (MQTT, HTTPS) and data formats (JSON, XML).

Engineering tool to optimize the development process

CODESYS Professional Developer Edition offers powerful functions to help programmers increase the efficiency and quality of industrial applications.

It is a software suite consisting of add-on tools to optimize the development process. It includes connections to the source code management systems, static code analysis, UML, as well as tools for test automation and tools for the measurement of execution times.

Advantages

• Add-ons for ctrlX PLC
• Joint project planning of PLC and motion applications
• Identical use of the protocol stack for different fieldbus technologies
• Integrated visualization
• Support of IoT communication (MQTT, HTTPS, …)
• Increase in productivity in every phase of software development

Target Groups

• Machine Builder
• Machine Operator
• System Integrator

Find out more in this video by Dieter Hess, Founder and CEO of the CODESYS Group.

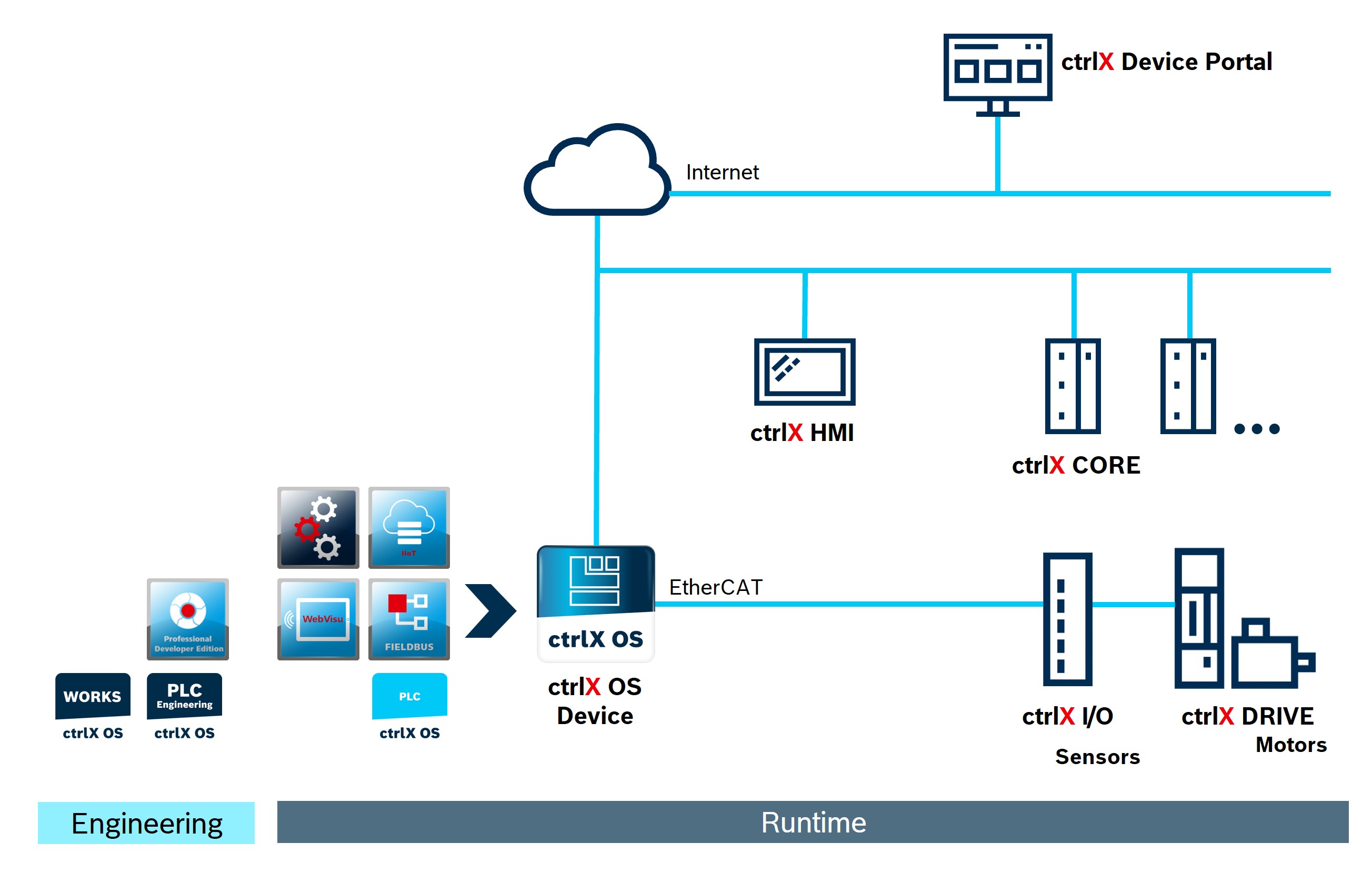

Topology

CODESYS offers additional software for the engineering process and additional libraries for ctrlX PLC.

About CODESYS GmbH

The CODESYS Group is one of the world's leading software manufacturers in the automation industry. At its headquarters in Kempten/Germany and its subsidiaries in China, Italy and the United States, the group currently employs approx. 250 people. The CODESYS Group focuses on developing and marketing the manufacturer-independent IEC 61131-3 automation suite CODESYS and the associated product portfolio. CODESYS covers the complete software side of automation. Core products of the market-leading automation suite are the CODESYS Development System, the corresponding platform-independent control system CODESYS Control and the CODESYS Automation Server, the cloud-based industry 4.0 platform. The customers of the group, founded in 1994 by Dieter Hess and Manfred Werner, come from all areas of automation: manufacturers of industrial controls as well as their users or operators who automate or operate machines and systems with CODESYS.
